1kHz Real-Time Robot Control System Monitoring Architecture

When collecting performance data from a 1kHz real-time control loop, you face a dilemma:

RT Loop Requirements	Monitoring Requirements
Deterministic execution	Data storage (memory/disk I/O)
No memory allocation	Network transmission (ROS2 publishing)
No blocking calls	Statistics calculation
No exception handling	Visualization

This article designs a monitoring architecture that collects high-resolution performance data while maintaining RT determinism.

Architecture Overview

Core Pattern: RT/Non-RT Producer-Consumer

• Producer: RT thread pushes data to lock-free queue (no blocking)
• Consumer: Non-RT thread polls queue and publishes to ROS2 topics

Why Thread Separation? (Instead of Process Separation)

Aspect	Thread Separation	Process Separation
Memory sharing	Direct heap memory access	IPC required
Latency	Microsecond level	Additional IPC overhead
Lifecycle management	Single process	Multiple processes

Data Structures

RtSample (216 bytes)

Complete RT cycle data for each 1ms period:

Category	Data	Bytes	Purpose
Timing	monotonic_ns, sequence	16	Sequence tracking
Loop Performance	loop_exec_us, loop_period_us, loop_jitter_us, deadline_miss	17	RT performance analysis
Joint State	6-axis actual/cmd (position, velocity, torque)	144	Control quality evaluation
Drive State	CiA 402 status_word, control_word, op_mode	30	Servo diagnostics
Fieldbus	wkc, wkc_mismatch, link_error	4	Communication stability

Constraint: Must be trivially_copyable for lock-free queue operations.

Event (64 bytes, Cache-line aligned)

Structure for event-based notifications:

struct alignas(64) Event {
    // Classification (4 bytes)
    EventType type;
    uint8_t source_id;
    EventSeverity severity;
    uint8_t joint_id;

    // Timing (24 bytes)
    uint64_t monotonic_ns;
    uint64_t event_sequence;
    uint64_t ref_sample_seq;

    // Data (24 bytes)
    int32_t error_code;
    uint8_t extra_len;
    uint8_t extra[21];

    // Numeric (4 bytes)
    float value;

    // Padding (8 bytes) - 64-byte alignment
};

Lock-Free SPSC Queue

Implementation Choice: rigtorp::SPSCQueue

• Wait-free: Producer performs at most 2 atomic loads on 64-bit Linux
• False sharing prevention: 64-byte cache line alignment

// Cache line alignment to prevent False Sharing
static constexpr size_t kCacheLineSize = 64;

alignas(kCacheLineSize) std::atomic<size_t> writeIdx_ = {0};  // Only Producer writes
alignas(kCacheLineSize) size_t readIdxCache_ = 0;              // Producer local cache
alignas(kCacheLineSize) std::atomic<size_t> readIdx_ = {0};    // Only Consumer writes
alignas(kCacheLineSize) size_t writeIdxCache_ = 0;             // Consumer local cache

Performance Benchmark (100,000 iterations, Release -O2)

Operation	Mean	P99	Notes
RtSample creation + queue push	0.3 us	0.7 us	216B struct
Event creation + queue push	~0.1 us	0.3 us	64B struct
Memory usage (queue)	1.8 MB	-	8192 samples + 512 events

Total monitoring overhead: < 0.05% of 1ms period

ROS2 Topic Design (3-Tier)

Topic	Frequency	QoS	Purpose
/rt_raw	1kHz	best_effort, depth=200	Full recording, post-analysis
/rt_events	On event	reliable + transient_local, depth=50	Event notifications
/rt_monitor_stats	10Hz	reliable, depth=20	Real-time health dashboard

Decimation (1kHz to 10Hz)

// /rt_raw publishes every sample (1kHz)
rt_raw_pub_->publish(to_rt_raw(sample, now));
sample_count_++;

// /rt_monitor_stats uses 100:1 decimation (10Hz)
if (sample_count_ % 100 == 0) {
    publish_stats();
}

Edge Detection (Preventing Duplicate Events)

// Rising edge detection: emit event only when current=true && previous=false
const bool faulted = servo.faulted;
if (faulted && !prev_faulted_) {
    emit(EventType::SERVO_FAULT, ...);
}
prev_faulted_ = faulted;

Cooldown Mechanism (Preventing Event Storms)

Continuous events like deadline misses can generate thousands of events in a short time. To prevent this, apply a 100ms cooldown:

// Ignore same event type if it occurs within 100ms
constexpr auto kEventCooldown = std::chrono::milliseconds(100);

if (now - last_event_time_[type] > kEventCooldown) {
    emit(type, ...);
    last_event_time_[type] = now;
}

Storage and Visualization

MCAP Format

• Native PlotJuggler support
• Efficient time-based indexing
• Compression options (zstd, lz4)

rosbag2 QoS Compatibility Note

When recording the /rt_raw topic published with best_effort QoS, it may conflict with rosbag2's default QoS (reliable). Use a QoS override file:

# qos_override.yaml
/rt_raw:
  reliability: best_effort
  history: keep_last
  depth: 200

ros2 bag record /rt_raw /rt_events --qos-profile-overrides-path qos_override.yaml

Storage Capacity Calculation

Topic	Calculation	Hourly Storage
/rt_raw	1kHz x ~250B x 3600s	~1.0 GB
/rt_events	Variable based on event frequency	10-50 MB
/rt_monitor_stats	10Hz x 80B x 3600s	~3 MB
Total		~1.0-1.1 GB

Rolling Retention (External Script)

Two-stage cleanup policy for unlimited operation:

# Time-based: Delete files older than 60 minutes
cleanup_old_files() {
    find "$BAG_DIR" -name "*.mcap" -mmin +"$RETENTION_MIN" -delete
}

# Capacity-based: FIFO deletion when disk usage exceeds 70%
cleanup_disk_space() {
    # Delete oldest files first
}

PlotJuggler Configuration

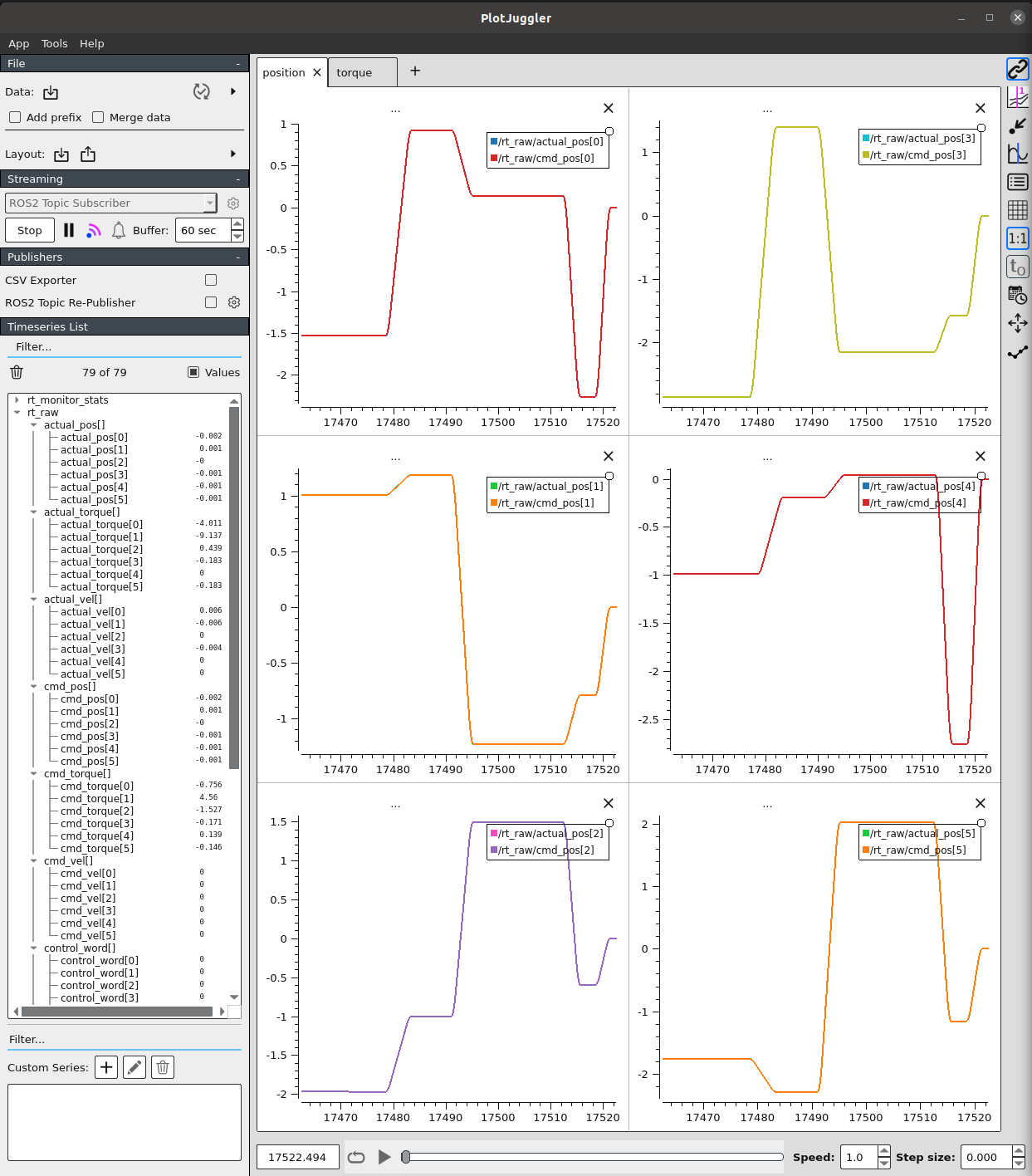

Real-time visualization of 6-axis joint actual_pos vs cmd_pos using PlotJuggler

Streaming Mode Settings:

• Mode: ROS2 Topic Subscriber
• Time Window: 180 seconds (3-minute rolling)
• Max Points: 20,000

Exclude uint64 Fields

monotonic_ns, sequence, and other uint64 fields may cause truncation errors in PlotJuggler. Exclude these fields from visualization.

Monitoring Health Metrics

Self-Monitoring

Field	Meaning	Warning Threshold
rt_queue_fill_pct	SPSC queue utilization	> 70%
rt_overflow_delta	Queue overflow count	> 0
publisher_lag_ms	RT to Non-RT propagation delay	> 50ms
seq_gap_count_delta	Lost sample count	> 0

Operational Thresholds

Metric	Normal	Warning	Critical
rt_queue_fill_pct	< 50%	> 70%	> 90%
publisher_lag_ms	< 10ms	> 50ms	> 100ms
loop_jitter_us (P99)	< 50us	> 100us	> 200us
seq_gap_count	0	> 0	-

Operational Recommendations

Development/Debugging Purpose

This monitoring system is designed for development and debugging purposes.

Situation	Recommendation
Development environment	Enable PlotJuggler real-time visualization
Production	Disable 1kHz topic publishing or enable only when needed
When issues occur	Enable monitoring to analyze root cause

Note: PlotJuggler real-time visualization consumes significant CPU resources. 1kHz topic publishing can also cause system load.

Key Takeaways

1. RT/Non-RT Separation: Lock-free SPSC Queue maintains RT thread determinism while transferring data to Non-RT thread.

2. 3-Tier Topic Design: Optimize QoS for each purpose.

   • /rt_raw (1kHz): Full recording
   • /rt_events: Event notifications
   • /rt_monitor_stats (10Hz): Dashboard

3. Lock-free Queue Performance: RtSample push takes 0.3us, less than 0.05% overhead of 1ms period.

4. MCAP Rolling Retention: External scripts for time/capacity-based cleanup support unlimited operation.

5. Self-Monitoring: Track queue utilization, latency, and lost samples to verify the health of the monitoring system itself.

6. Development Tool: Use PlotJuggler and 1kHz publishing only in development environments; enable in production only when needed.
